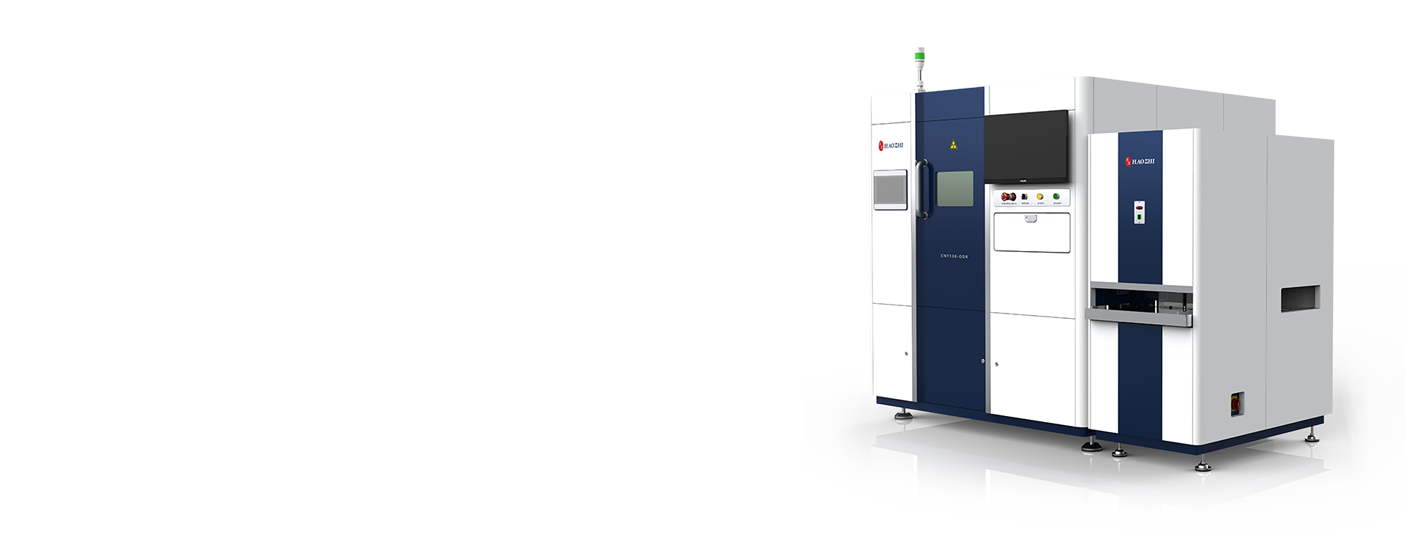

Online X-RAY for Wound Battery

Online lithium battery DR detection system
Auto-elimination save, Automatic scan code
Seamless connection between upper and lower ends
More
Online X-RAY for Wound Battery

Designed for Lithium Batteries

Suitable for Wound Battery detection
Support one key change

Online X-RAY for special-shaped battery

Industry 4.0 Design Concept

AI intelligent judgment
NG products are automatically removed and saved
One-key replacement can be added

Online X-RAY for special-shaped battery

CNT cold cathode X-ray source

High Precision Imaging System
High detection efficiency and stability
High-speed scanning detector

Online X-RAY for special-shaped battery
Application case & detection effect
Specifications
  • System parameter
  • X-ray source
  • Detector
System parameters PPM 12~30
Missed pick rate
0
False positive rate 2%
Repeated measurement accuracy ±0.04 mm

X-ray source Operating Voltage 90~150 KV Optional
Working current 10~150 μA
Focus size 5~15 μm Optional
Light pipe type closed tube
Detector Grayscale
14 ~ 16 bits

Equipment dowry rate
≥ 98%
Number of cell layers ≤ 100层
Changeover time ≤ 30 min
