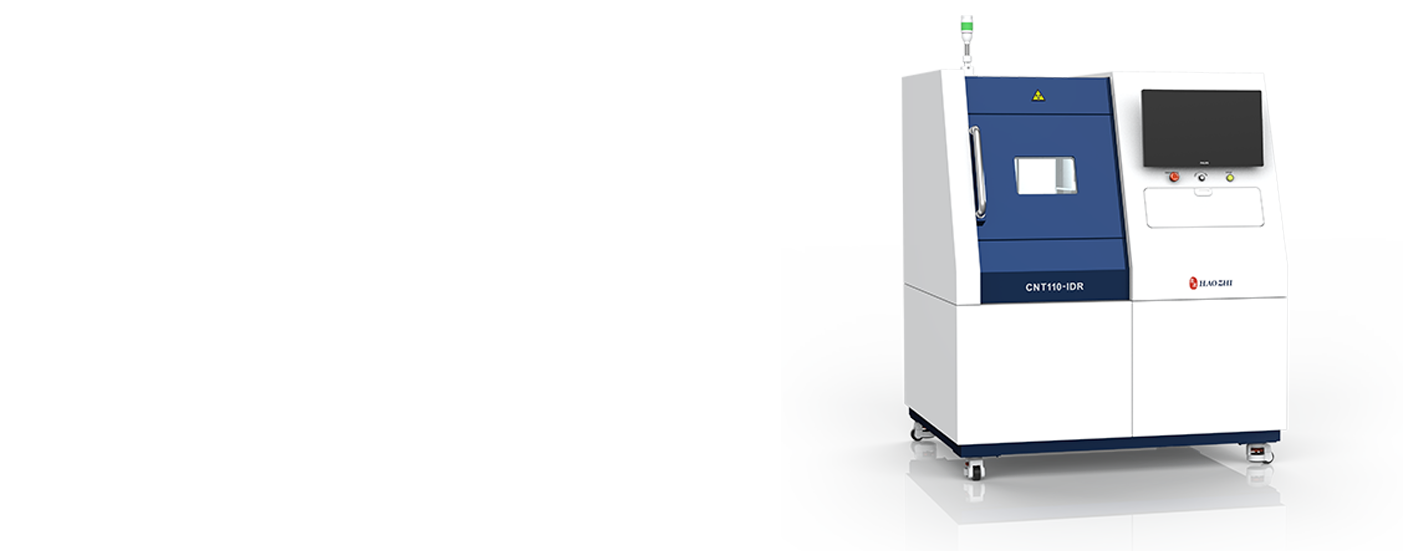

Offline X-RAY DR for Materials Analysis

Self-developed carbon nanotube X-ray tube
High Resolution Flat Panel Detector
Supports dimensional and defect detection
needs of consumer electronics products
More
Offline X-RAY DR for Materials Analysis

Designed for Materials Analysis

Suitable for different types of Materials Analysis
Inner layer size
and defect detection

Offline X-RAY for Materials Analysis

Carbon Nanotube X-Ray Tube

High Photon Efficiency Integrated X-ray Source
Support multi-angle 2.5D detection
Customized software functions available

Offline X-RAY for Materials Analysis

High resolution images

The optimal resolution can reach 2.5μm
CE inner layer dimension and defect detection

Offline X-RAY for Materials Analysis
Application case & detection effect
Specifications
  • System parameter
  • X-ray source
  • Detector
System parameters Grayscale 14/16bits
Resolution 5μm
Dimensions 1454x1360x1785mm
Weight 1000kg
Stage size 510x440mm
Maximum tilt angle 60°
X-ray source Operating Voltage 90~150KV
Working current 10~150μA
Focus size 5~15μm Optional
Light pipe type Closed tube
Detector Detector type Digital flat panel detector
Pixel size 49.5μm Optional higher level
Number of pixels 1300x1152 Optional higher level
Imaging area 64x57mm Optional higher level
