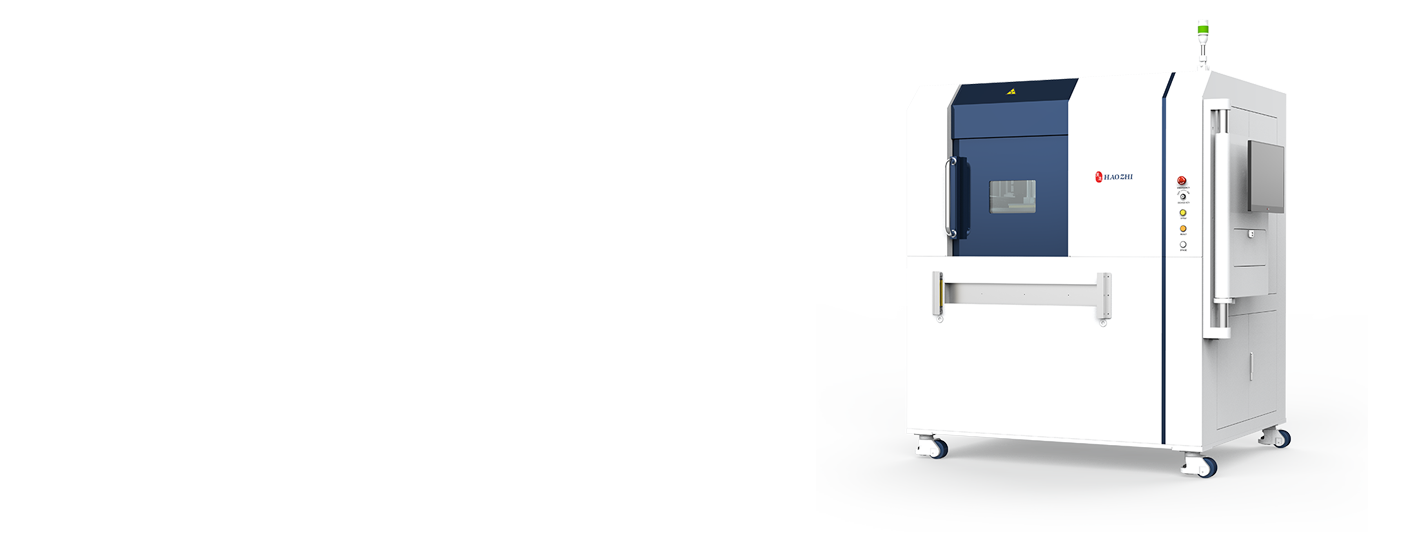

Offline X-RAY for Laminated battery

Suitable for Laminated battery detection
Realize semi-automatic detection
Bad auto-tagging
The software provides a variety of detection functions
More
Offline X-RAY for Laminated battery

Designed for Batteries

X-RAY for Lithium battery
Support one-key change.

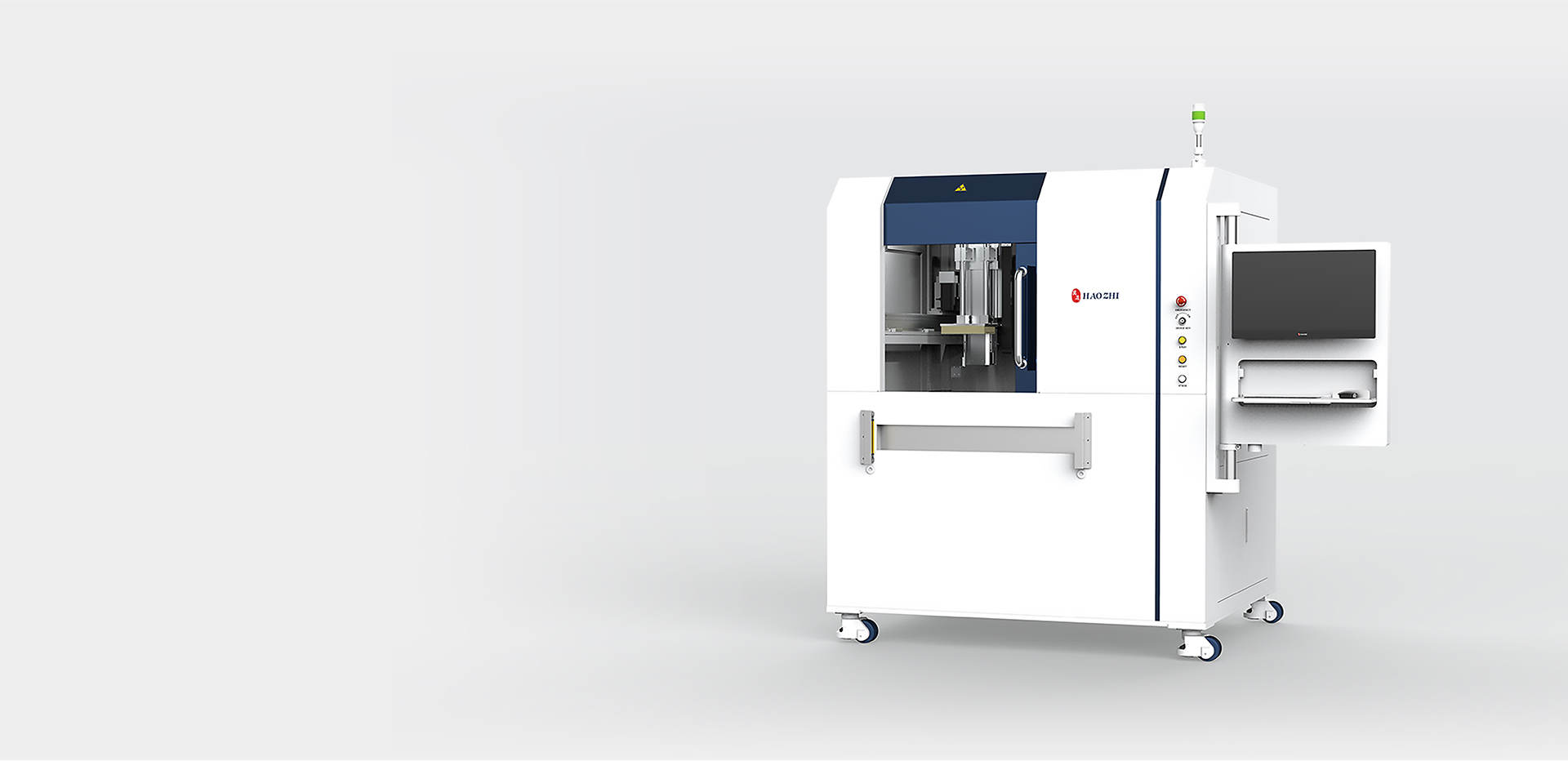

Offline CE type special-shaped battery X-RAY

Various detection functions

Auxiliary quality and process analysis
Semi-automatic detection with visual navigation
Compatible with a variety of battery detection
AI-based battery detection algorithm

Offline CE type special-shaped battery X-RAY

CNT cold cathode X-ray source

High photon efficiency
High Penetration Carbon Nanotubes
High detection accuracy
Support quick product changeover

Offline CE type special-shaped battery X-RAY
Application case & detection effect
Specifications
  • System parameter
  • X-ray source
  • Detector
System parameters Grayscale 14/16bits
Stage size 600x600mm
Standard Dimensions 1600x1400x1890mm
Overall weight 2800kg
X-ray source Operating Voltage 90~150KV Optional
Working current 10~150μA
Focus size 3~15μm Optional
Light pipe type Closed tube
X-ray flat panel detector Detector type Digital flat panel detector
Pixel size 49.5μm Optional higher level
Number of pixels 1300x1152 Optional higher level
Imaging area 64x57mm Optional higher level
